Audio Technica AT-VM95 E/H pick-upelement incl. headshell
Artikelnummer: Audio Technica AT-VM95 E/H - Tonar 9670
AT-VM95E/H inclusief AT-HS6 headshell.
Specifications
VM95 series Elliptical stereo cartridge on AT-HS6 Headshell
- AT-VM95E mounted on AT-HS6BK headshell
- The total set weight is 15.5g
- Assembled and tested in the Audio-Technica Factory in Fukui-Japan
VM95 Series - Styli compatibility
Every cartridge diamond stylus becomes worn after a period of play.
Around 500 hours for a conical stylus, 300 hours for an Elliptical stylus, 1000 hours for a Microlinear stylus, and 800 hours for a Shibata stylus.
Our VM95 Series dual moving magnet cartridges can be used almost forever by replacing the interchangeable stylus. It is no longer necessary to purchase a complete cartridge when your diamond is worn out, you can simply buy the matching replacement stylus, but also enjoy the experience of upgrading your cartridge with a different stylus.
The six models of VM95 Series cartridges all use the same electromagnetic engine-body, therefore each of the six replacement styli are perfectly compatible.
AT-VMN95C
AT-VMN95E
AT-VMN95EN
AT-VMN95ML
AT-VMN95SH
AT-VMN95SP
Elliptical Bonded Stylus
Elliptical diamond stylus follows the groove modulation with greater precision compared to a conical stylus, offering improved frequency and phase responses whilst reducing distortion.

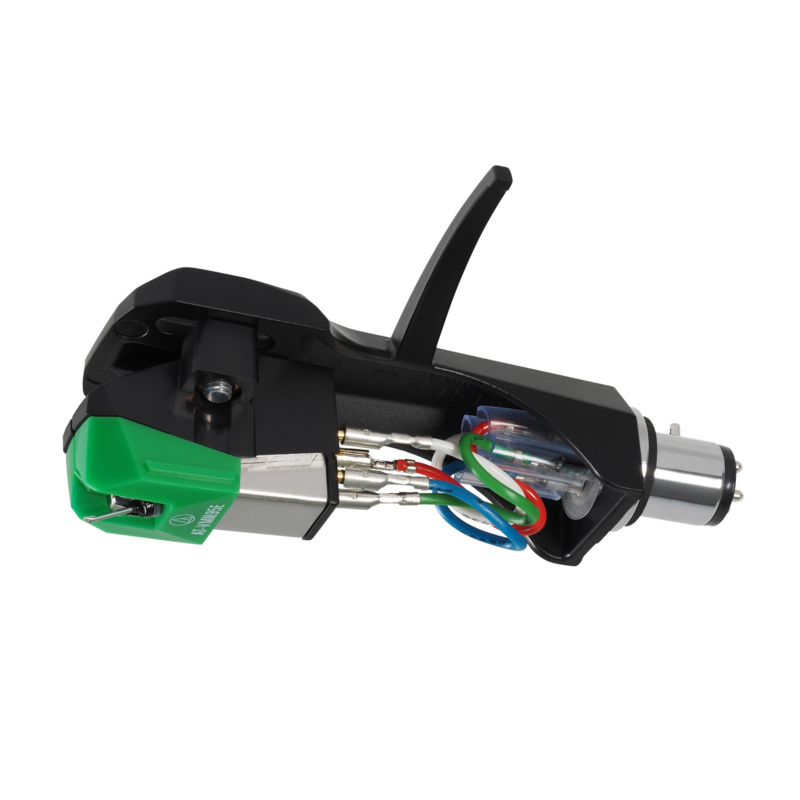

Preassembled With AT-HS6BK Headshell
The AT-VM95E cartridge is fitted onto the 9g aluminiumdie cast body headshell
Specifications
| Cartridge & Stylus | |
|---|---|
| Frequentierespons | 20 - 22,000 Hz |
| Kanaalscheiding | 20 dB (1 kHz) |
| Verticale trackinghoek | 23° |
| Vertical Tracking Force | 1.8 to 2.2g (2.0g standard) |
| Naaldconstructie | Bonded Round Shank |
| Aanbevolen ladingsimpedantie | 47,000 Ω |
| Spoelimpedantie | 3.3 kΩ (1 kHz) |
| Gelijkstroomweerstand | 485 Ω |
| Spoelinductantie | 550 mH (1 kHz) |
| Uitgangsspanning | 4.0 mV (@ 1 kHz, 5 cm/sec) |
| Balans uitgangskanaal | 2.0 dB (1 kHz) |
| Naaldvorm | Elliptical |
| Cantilever | Aluminium Pipe |
| Statische compliantie | 17 x 10 – 6 cm / dyne |
| Dynamische compliantie | 7 x 10 – 6 cm / dyne (100 Hz) |
| Bevestiging | 1/2” centres |
| Afmetingen | 21.2 × 21.4 × 62.4 ( H x W x D mm) |
| Model | AT-VM95E/H |
| Aanbevolen ladingscapaciteit | 100-200 pF |
| Vervangingsnaald | AT-VMN95E |
| Naaldgrootte | 0.3 x 0.7 mil |
| Soort | VM Stereo Dual Magnet |
| Gewicht | 15.5 g |
| Spoeldraad | T.P. Copper |
