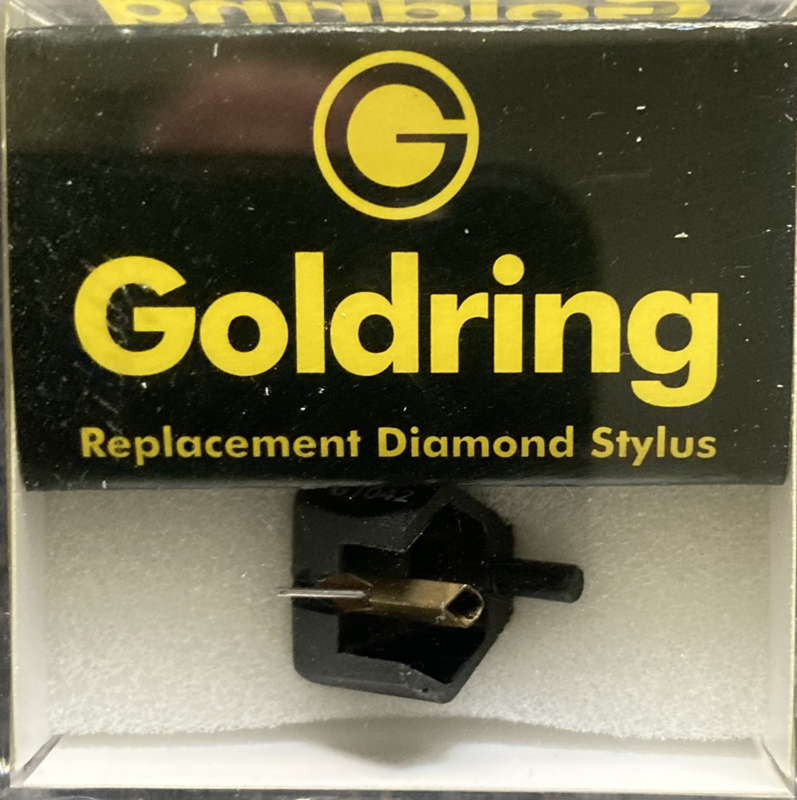

Goldring G-1042 D-42 Gyger S pick-upnaald
Artikelnummer: Tonar 1861 OR
Goldring G-1042 D-42 Gyger S pick-upnaald = Tonar 1861 ORIGINEEEL.
Goldring G1042 D42 Gyger S pick-upnaald = Tonar 1861 ORIGINEEEL.
Stylus tip: naked Gyger S.
Kleur kunststof: zwart.
Technische informati Goldring:
Frequency Response: 20 Hz-20 kHz +/- 3 dB
Channel Balance: within 2 dB @ 1 kHz
Channel Separation: better than 25 dB @ 1 kHz
Sensitivity: 6.5 mV +/-1.5 dB, 1 kHz @ 5 cm/sec
Static Compliance: 24 mm/N (lat); 16 mm/N (vert)
Equivalent tip mass: 0.45 mg
Vertical Tracking Angle: 24 °
Stylus Profile: Gyger S
Stylus Type: Replaceable
Load Resistance: 47 kΩ
Load Capacitance: 150-200 pF
Internal Inductance: 570 mH
Internal Resistance: 660 Ω
Cartridge Mass: 6.3 g
Cartridge Mass (inc. fixings): 7.6 g
Fixing Centre: 0.5" (12.7 mm)
Playing Weight: 1.5 - 2.0 g (1.7 g nom.)
Replacement stylus: 1042 - D42
